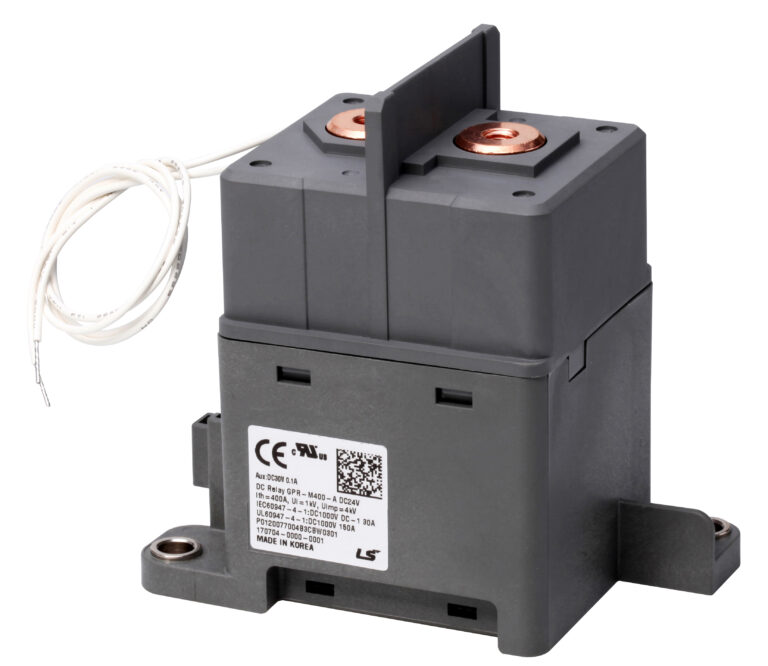

GPR-M400A-24V
GPR-M400A High Voltage DC contactor 400Amps, 1000VDC (DC relay) with AUX-contact. The relay is perfect for applications in automotive, solar, ups, Energy Storage Systems, etc. The magnets take care for the arc blowout. Coil voltage 24VDC.
Share:
GPR-M400A-24V DC-relay is a single pole, high voltage DC contactor (rated 400A/1000VDC) with a 24 VDC coil.The magnets and the gas in the ceramic chamber take care for the arc blowout. Coil voltage is 24VDC (also 12VDC available).
Article reference number for the GPR-M400A-24V (or GPR-M400-A) is: 1454000200
The DC-contactors (EV relay) from LS Electric are widely known for it’s superb quality and safety. Many number 1 car manufacturers use these DC-contactors in their applications. For example integrated in the Battery Disconnect Unit (BDU) for switching the plus or minus line. All DC-contactors are produced on fully automatic production lines, which are situated in cleanrooms. This quarantees highest quality with full traceability.
Downloads
| To get a good overview of the GPR-M400A-24V, please download one of the GPR product line pdf’s below: |
| Download Leaflet GPR Relays |
| Download Extended Catalog GPR-Series |
Specifications GPR-M400A-24V (Key features)
| Number of poles | 1 pole |
| Operating Voltage | up to 1000VDC |
| Coil voltage | 24VDC |
| AUX contact: | Yes, Normally Open |
| Rated impulse withstand voltage, U imp | 6kV |
| Conventional thermal Current, Ith | 400 Amps |
| Shorttime withstand current | 2 min: 750 Amps |
| Unnamed variable | 15 min: 500 Amps |
| Mechanical durability | > 200.000 cycles |
| Electrical durability | 200A, 1000VDC, 1.000cycles (at 360 cycles/Hr) |
| Voltage drop | 0.02V@20Amps |
| Operating time | Max. 30ms |
| Release time | Max. 10ms |
| Insulation strength (initial) | Min. 100MΩ (@1000VDC) |
| Size, W × H × D( mm ) | 100x58x99 |
| Temperature range | -40 – 85C |
| Humidity | 5-95% R.H. |
| Weight | 750 gr |
| Certification | CE, UL |
Article reference number for the GPR-M400A-24V (or GPR-M400-A) is: 1454000200
The DC-contactors (EV relay) from LS Electric are widely known for it’s superb quality and safety. Many number 1 car manufacturers use these DC-contactors in their applications. For example integrated in the Battery Disconnect Unit (BDU) for switching the plus or minus line. All DC-contactors are produced on fully automatic production lines, which are situated in cleanrooms. This quarantees highest quality with full traceability.
