Stappen motor NEMA34, 6,8Nm

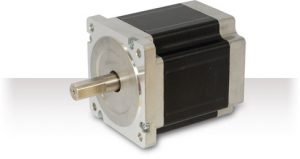

Stappen motor NEMA34, 6,8Nm, 7,1Arms, 96mm; Model M1343031.
Beschrijving
Stappen motor NEMA34, 6,8Nm, 7,1Arms, 96mm; Model M1343031.
The family of NEMA34 stepper motors spread over six different stator lengths.
The maximum torque exceeds 12Nm (1416oz-In) placing this series of stepper motors among the best performing commercially available.
All the motors have 8 wires and can be used both in bipolar and unipolar mode.
When the motors are used in bipolar mode (recommended to obtain the best performance) it is possible to choose between a series type connection, to limit the phase current, or parallel type, for applications exploiting the motors at high speeds.
The 14mm shaft diameter ensures stability in applications with belt transmission. Upon request the motor can be realized with 12mm shaft with key, with double shaft, etc.
Technical Data
| Bipolar Holding Torque | 6,8Nm (963oz-in) |
| Bipolar Phase Current | 7,1Arms parallel connection 3,5Arms series connection |
| Rotor Inertia | 1550g-cm2 (8,46oz-in2) |
| Length | 98mm (3,86inches) |
| Weight | 3000g (106oz) |
| Flange | NEMA 34 86x86mm (3,39×3,39inches) |
| Leads Number | 8 |
| Full step angle | 1,8° |
Benefits
- High torque density
- Optimized for microstepping drive
- Excellent dynamic performance
- Double shaft versions available
- Rear ground screw
